Deformable DETR
SenseTime/deformable-detr
published Mar 2022 · updated May 2024
Deformable DETR is a detection model that uses a deformable transformer attention mechanism for end-to-end object detection.
specs
| Task | Object Detection |
| Architecture | Encoder-decoder transformer with ResNet-50 backbone |
| Parameters | 34M |
| License | Apache 2.0 |
| Training Data | COCO 2017 (118k images) |
| Inference Speed | 27 FPS (single image) |
about this model
Deformable DETR (ResNet-50) is an object detection model that uses a deformable transformer attention mechanism to accelerate convergence and improve small-object detection relative to the original DETR. Trained end-to-end on COCO 2017 (118k annotated images), it employs an encoder-decoder transformer with a convolutional backbone, 100 learned object queries, and a bipartite matching loss (Hungarian algorithm) for optimal one-to-one assignment between predictions and ground truth.
Key mechanism

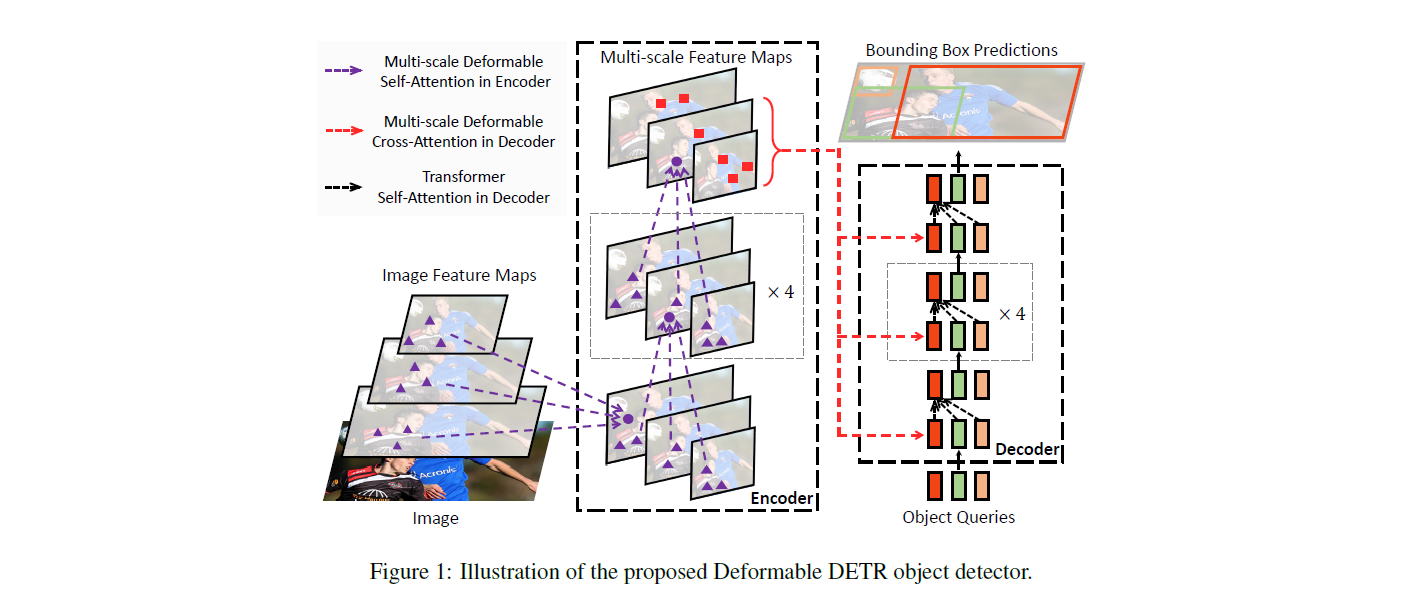

Instead of attending to all spatial locations, the deformable attention modules sample only a small set of key points around a reference, reducing complexity and enabling multi-scale feature aggregation without the high-resolution cost of DETR. This design allows the model to achieve better performance with 10× fewer training epochs (50 vs. 500).
Benchmark results (COCO val2017)
| Method | Epochs | AP | AP | Params (M) | FLOPs (G) | Train time (GPU hours) | Inference FPS |
|---|---|---|---|---|---|---|---|
| Deformable DETR (single scale) | 50 | 39.4 | 20.6 | 34 | 78 | 160 | 27.0 |
| DETR (DC5) | 500 | 43.3 | 22.5 | 41 | 187 | 2000 | 11.4 |
| Faster R-CNN + FPN | 109 | 42.0 | 26.0* | 42 | 180 | – | – |
Strengths
- Faster convergence: 50 epochs vs. 500 for DETR, reducing total training GPU hours from 2000 to 160.
- Comparable or better small-object AP (20.6) at a fraction of the training cost.
- Efficient inference: 27 FPS (single image) with 34M parameters and 78G FLOPs.
Deformable DETR is released under the Apache 2.0 license. The paper was presented as an ICLR 2021 Oral.
best for
- ·Real-time object detection in surveillance and autonomous driving
- ·Small object detection in aerial imagery or microscopy
- ·General-purpose object detection for photo analysis
FAQ
Object detection, especially small objects, with faster training and inference than original DETR.
It has 34 million parameters.
Apache 2.0 license.
